0807RGB Waterproof 3mm
RGB LED Chip Specifications
| Product Model | 0807RGB | Package Type | 2.0×1.7×0.8mm |
| LED Type | CHIP VIEW RGB LED | Operating Voltage | 12V 2.5mA |
| Data Protocol | Single-wire cascaded | PWM Frequency | 4.0 KHz |
- Waterproof 3mm chip view RGB LED with integrated driver IC
- High quality single-wire cascaded constant current drive
- High reliability, low power consumption design
- High anti-interference performance and excellent luminescence consistency
- Water clear lens appearance with RoHS compliance
- Wide operating temperature range: -40°C to +85°C
- ESD protection up to ±2KV (HBM)
- 4000 pieces per reel packaging
Package Dimensions
Dimensions (mm):
• Length: 2.0 ± 0.2
• Width: 1.7 ± 0.2
• Height: 0.8 ± 0.2
Applications
- Full-color LED signs
- RGB LED strip lights
- Point light sources
- LED strip screens
- Color curtain screens
- Christmas decorations
Package Notes:
• All dimensions in millimeters (mm)
• Tolerance ±0.2mm unless specified
• Waterproof design suitable for outdoor applications
0807RGB Waterproof 3mm
RGB LED Chip Specifications
| Parameter | Symbol | Maximum Rating | Unit | Test Conditions |
|---|---|---|---|---|
| Core Supply Voltage | VIN | -0.4 to 14.0 | V | Ta = 25°C |
| Logic Input Voltage | VI | -0.4 to 7.0 | V | Ta = 25°C |
| Output Current | IOUT | 10 | mA | Ta = 25°C |
| Operating Temperature | Topr | -40 to +85 | °C | - |
| Storage Temperature | Tstg | -55 to +150 | °C | - |
| ESD Voltage | VHBM | ±2 | KV | Human Body Model |
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Conditions |
|---|---|---|---|---|---|---|
| Supply Voltage | VN | 9.0 | 12.0 | 14.0 | V | VIN = 12V, Ta = 25°C |
| Standby Current | IDD | - | 0.23 | - | mA | VIN = 12V, IOUT "OFF" |
| Input High Level | VIH | 2.3 | - | - | V | DIN Input High Level |
| Input Low Level | VIL | - | - | 1.9 | V | DIN Input Low Level |

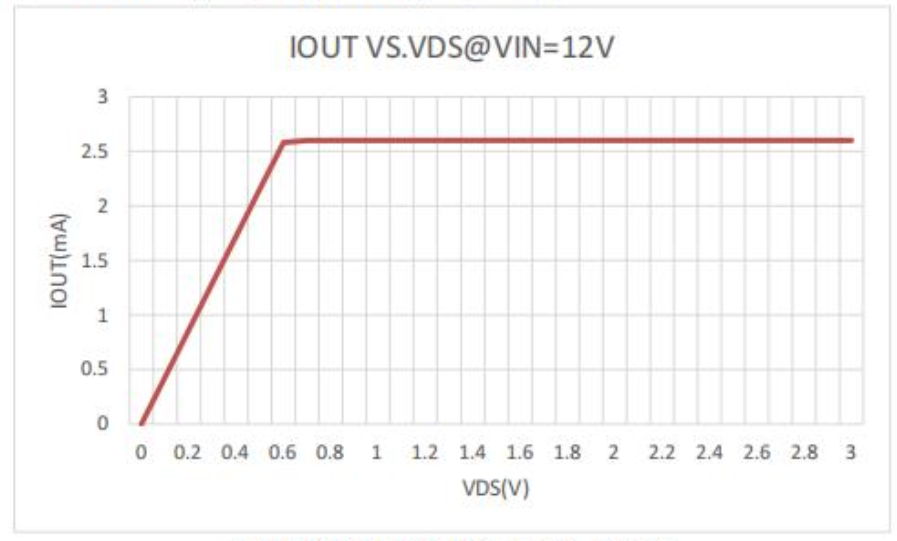

| RGB Output Current | IOUT_RGB | - | 2.6 | - | mA | VIN = 12V, VDS = 1V |
| PWM Frequency | fPWM | - | 4.0 | - | KHz | 50% duty cycle |
Test Conditions:
• Ambient temperature: Ta = 25°C
• Supply voltage: VIN = 12V unless specified
• Values are typical at rated conditions
0807RGB Waterproof 3mm
RGB LED Chip Specifications

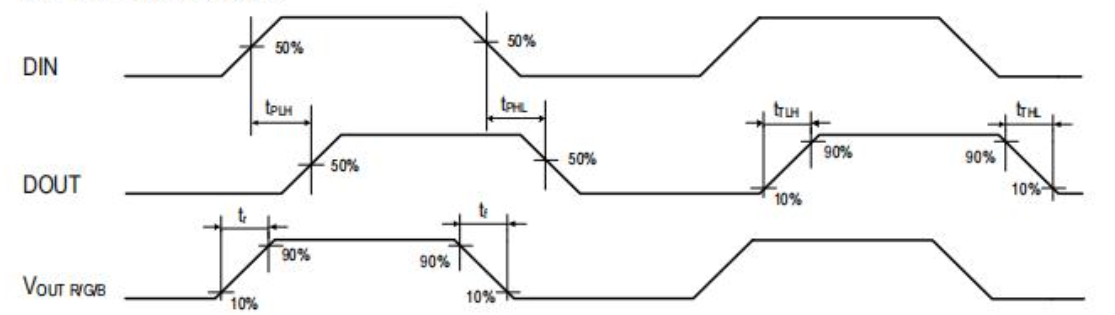

Encoding Description:
This chip uses single-line return-to-zero code. Each code element must have a low level, and the high level time determines whether the data is "0" or "1".
| Symbol | Parameter | Typical Value | Tolerance | Units |
|---|---|---|---|---|
| T | Code Period | 1.2 | - | μs |
| T0H | 0 Code High Level Time | 0.3 | ±10% | μs |
| T0L | 0 Code Low Level Time | 0.9 | - | μs |
| T1H | 1 Code High Level Time | 0.9 | ±10% | μs |
| T1L | 1 Code Low Level Time | 0.3 | - | μs |
| TRst | Reset Code Low Level Time | >200 | - | μs |
Data Format: TRst + Chip1 24bits + Chip2 24bits + ... + ChipN 24bits + TRst
Transmission Rate: 800 Kbps/second
Protocol Notes:
• Data transmission uses single-wire cascaded protocol
• Each chip receives its data and forwards remaining data to next chip
• High level time strictly controlled within specified tolerances
• Reset code required between data transmissions
0807RGB Waterproof 3mm
RGB LED Chip Specifications
- Waterproof RGB LED strip lights for outdoor applications
- Full-color LED signs and displays
- Architectural and decorative lighting
- LED strip screens and color curtain displays
- Point light sources for accent lighting
- Christmas and holiday decorative lighting
- Automotive and marine lighting applications
Design Considerations:
- Use 12V regulated power supply with appropriate current capacity
- Implement proper data signal timing and protocol compliance
- Consider thermal management for high-density applications
- Follow ESD protection guidelines during handling and assembly
- Ensure waterproof connections for outdoor installations
- Use appropriate current limiting for optimal performance
Important Notes:
• LED performance may vary with temperature and supply voltage
• Proper protocol timing is critical for reliable operation
• Waterproof sealing must be maintained for outdoor use
• Product specifications subject to change without notice
• For latest specifications, consult GoldenCZ technical support
| Data Rate | 800 Kbps | Package | 4000 PCS/REEL |
| Color Depth | 24-bit (8-bit per color) | Waterproof Rating | Suitable for outdoor use |
| Drive Method | Constant current IC | Compliance | RoHS |
