CS-224RGB-10MM-24V-12W
RGB LED Strip Specifications
| GoldenCZ Technology | ||
|---|---|---|
| Prepared By 制作 |
Checked By 审核 |
Approved By 批准 |
| Version Number: A0 |
| Issuing Date: 2023/2/10 |
| Customer Approval Signatures | |||
|---|---|---|---|
| R&D Confirmed 研发确认 |
QC Validated 品管确认 |
Procurement Validated 采购确认 |
|
CS-224RGB-10MM-24V-12W
RGB LED Strip Specifications
| Product Model | Light Color |
|---|---|
| CS-224RGB-10MM-24V-12W | RGB Full Color |
- Flexible PCB design, can be bent freely, easy to cut and install
- MIP chip-level packaging technology, high-density linear arrangement, uniform light color, no light spots
- 180° wide beam angle
- DC 24V constant voltage drive design, safe low voltage, small voltage drop
- High adhesive, high thermal conductivity double-sided adhesive backing, easy installation, firm adhesion
- LED solid-state light source, energy saving and environmental protection, compliant with RoHS environmental standards
- Home decoration
- Commercial KTV, shopping malls, cabinet corner decoration or contour outlining

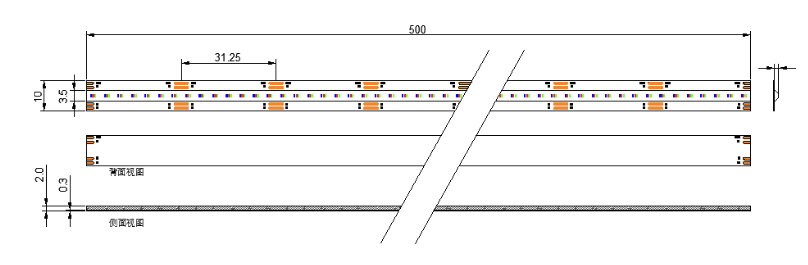

Shows LED positioning, cutting marks, and dimensional tolerances
CS-224RGB-10MM-24V-12W
RGB LED Strip Specifications
Shows multiple strips stacked in bundle configuration
Multiple LED strips connected in parallel configuration
Color-coded wiring: Red (+), Green (G), Blue (B) connections
| PCB Material | Double-sided FPC copper plated | Dimensions | 500×10×2.3mm×12 strips |
| Mounting Method | High adhesive double-sided backing | LED Quantity | 224×3 pcs/meter |
| Minimum Cutting Length | 31.25mm | Operating Temperature | -25 ~ +60°C |
| Standard Connection Length | 5 meters | Storage Temperature | -25 ~ +70°C |
| IP Rating | IP20 | Drive Mode | Common Anode |
CS-224RGB-10MM-24V-12W
RGB LED Strip Specifications
| Color | Power (W/meter) | Reference Color | Test Condition |
|---|---|---|---|
| R | 12 (RGB Full On) | 625 ± 5nm | DC=24V |
| G | 520 ± 5nm | DC=24V | |
| B | 465 ± 5nm | DC=24V |
Notes:
1. Test environment temperature: 25 ± 2°C
2. The above optical data are measured under GoldenCZ test system. Actual product parameters may differ from typical data. Data subject to change without notice.
Includes product label with part number, quantity, and specifications
Label shows: CS-224RGB-10MM-24V-12W, RGB Full Color, 480M quantity

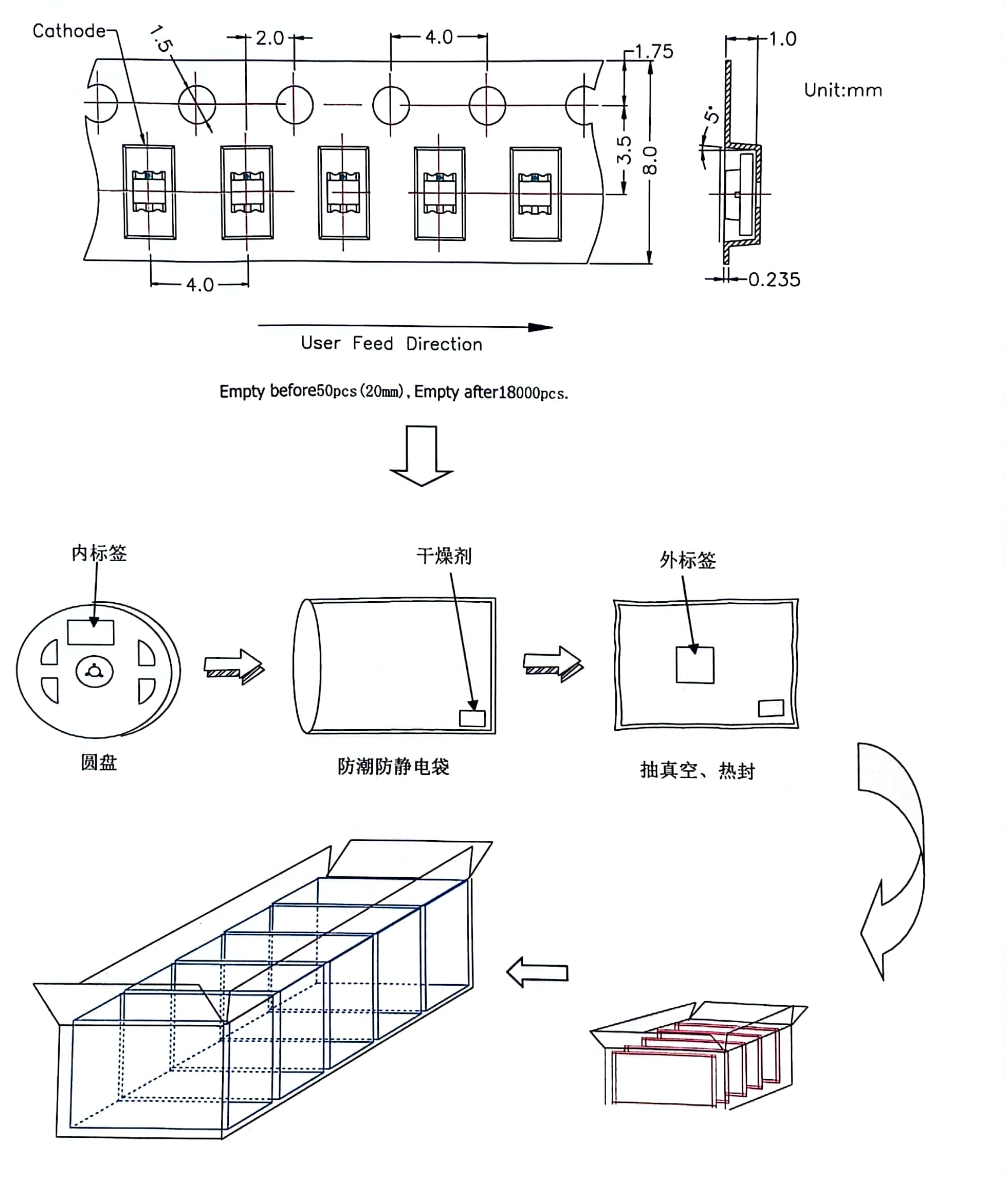

Packaging Notes:
1. After dispensing, FPC strips are separated with bubble wrap/pearl cotton, maximum stack of 40 layers
2. Stacked strips are bundled and secured with stretch film
3. Two stacks are placed side by side in packaging box, gaps filled with pearl cotton, label attached to upper left corner of box front
CS-224RGB-10MM-24V-12W
RGB LED Strip Specifications
1. During installation, avoid sharp objects touching the strip surface to prevent damage to the encapsulant and causing defects.
2. Avoid the light-emitting area encapsulant contacting high-temperature objects to prevent damage to the encapsulant and affecting light output.
3. Use DC 24V regulated power supply for driving. Select appropriate power supply according to the number of strips to be installed. Total power of strips driven by each power supply should be below 80% of the power supply's rated power.
4. Pay attention to waterproofing and moisture protection.
5. Strictly prohibit short-distance bending or large-angle twisting of the strip to avoid damaging the FPC circuit structure. Strip bending radius should be greater than 1cm.
⚠️ Important Safety Notice:
Proper installation and handling procedures are essential for maintaining product quality and preventing damage. Please follow all guidelines carefully to ensure optimal performance and safety.
🏁 End of CS-224RGB RGB LED Strip Specifications
GoldenCZ - Professional LED Solutions
