0201SR2
AlGaInP Red LED Chip
Product Overview
| Model | Chip Material | Emitting Light | Lens Color |
|---|---|---|---|
| 0201SR2 | AlGaInP | RED | Transparent |
Mini LED Technology
Extremely Wide Viewing Angle
Low Power Consumption
Moisture Level 1
RoHS Compliant
High Reliability
Package Dimensions

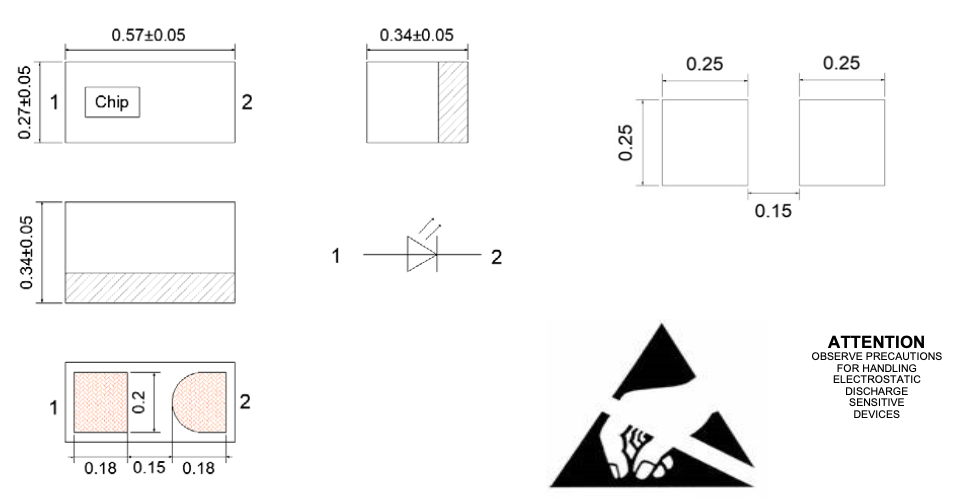

Package Outline & Recommended Soldering Pattern
Package Size
0.57±0.05 × 0.34±0.05mm
Chip Thickness
0.27±0.05mm
Pad Dimensions
0.25 × 0.25mm
Pad Spacing
0.15mm gap
Electrical & Optical Characteristics
At Ta = 25°C
| Parameter | Symbol | Min. | Typ. | Max. | Units | Test Conditions |
|---|---|---|---|---|---|---|
| Forward Voltage | VF | 1.8 | - | 2.2 | V | IF=5mA |
| Luminous Intensity | IV | 79 | - | 103 | mcd | IF=5mA |
| Peak Wavelength | λpeak | - | 629 | - | nm | IF=5mA |
| Dominant Wavelength | λdom | 617.5 | - | 630 | nm | IF=5mA |
| Viewing Angle | 2θ1/2 | - | 130 | - | deg | IF=5mA |
| Reverse Current | IR | - | - | 10 | μA | VR = 5V |
| Spectral Bandwidth | Δλ | - | 16 | - | nm | IF=5mA |
Absolute Maximum Ratings
| Parameter | Symbol | Rating | Units |
|---|---|---|---|
| Power Dissipation | Pd | 65 | mW |
| Forward Current | IF | 30 | mA |
| Peak Forward Current | IFP | 80 | mA |
| Reverse Voltage | VR | 5 | V |
| Operating Temperature | Topr | -40 ~ +85 | ℃ |
| Storage Temperature | Tstg | -20 ~ +60 | ℃ |
| Junction Temperature | Tj | ≤ 110 | ℃ |
| ESD (HBM) | ESD | 1000 | V |
Performance Characteristics

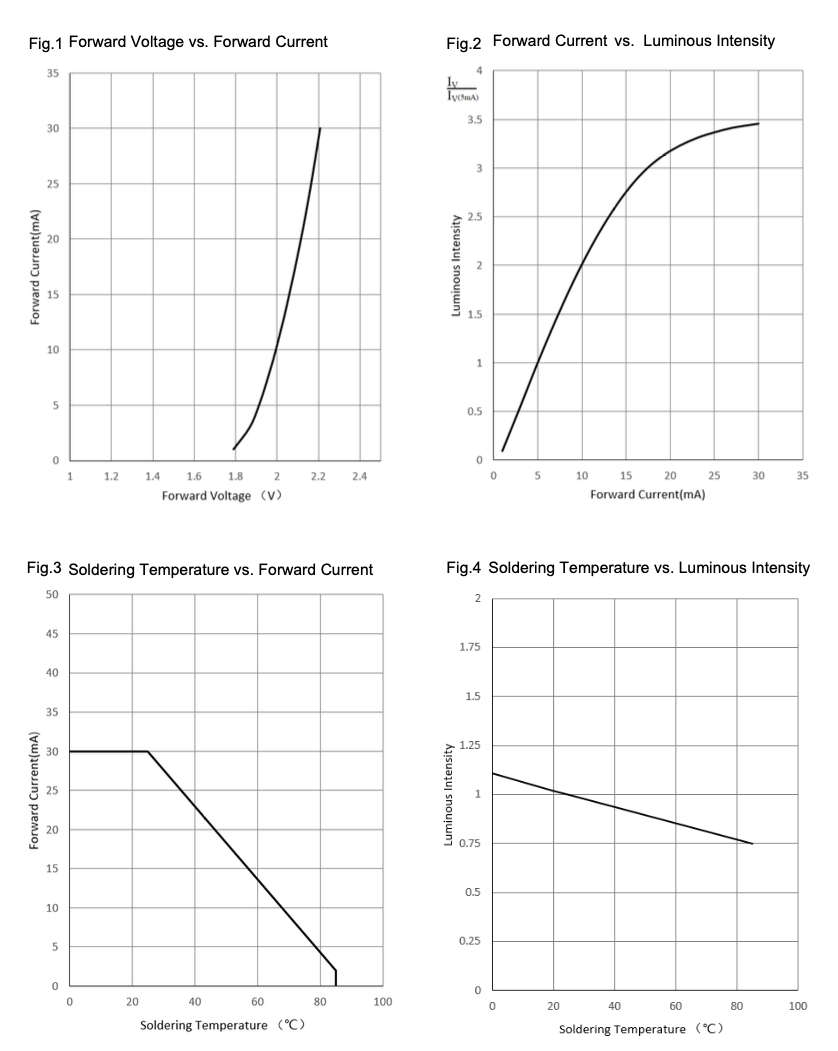

Electrical and Thermal Characteristics (Figs. 1-4)

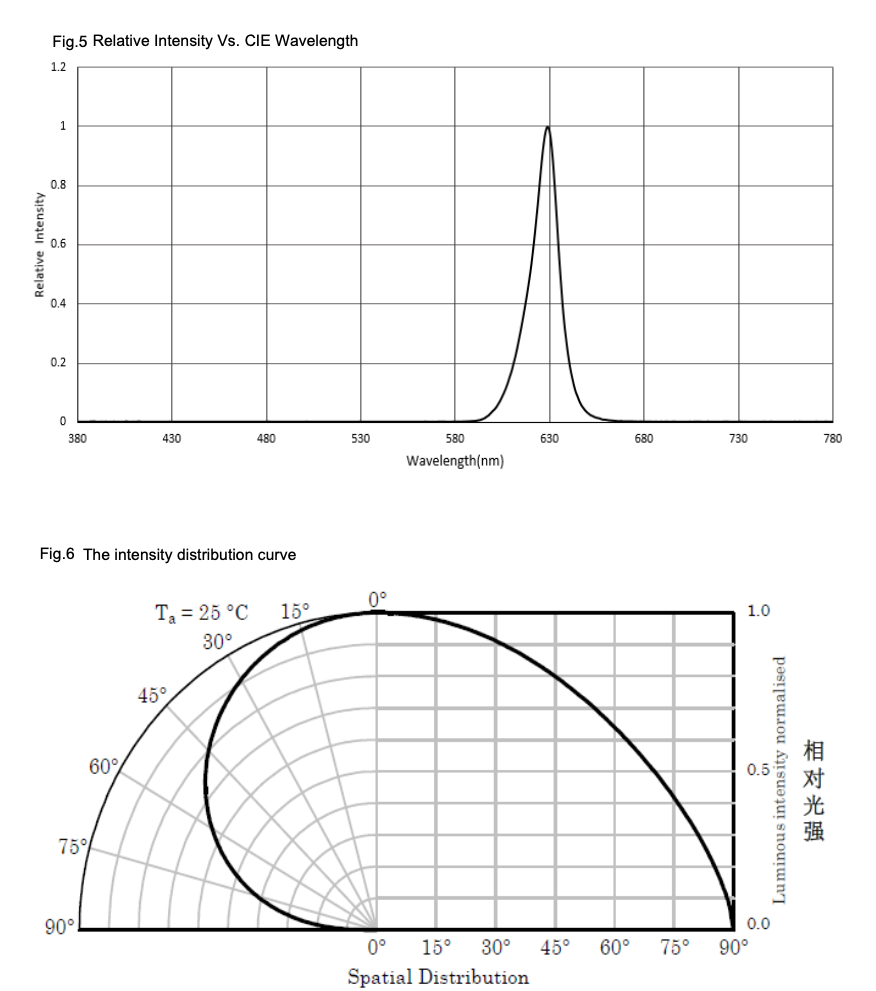

Optical Characteristics and Distribution Pattern (Figs. 5-6)
629nm
Peak Wavelength
130°
Viewing Angle
1.8-2.2V
Forward Voltage
79-103mcd
Luminous Intensity
Reflow Soldering Profile
Temperature Profile for Lead-free Assembly
Key Process Parameters
| Parameter | Recommendation | Maximum | Unit |
|---|---|---|---|
| Peak Temperature | - | 245 | ℃ |
| Time above Liquidus | 80 | 100 | s |
| Ramp-up Rate | 2 | 3 | K/s |
| Ramp-down Rate | 3 | 6 | K/s |
Packaging Information

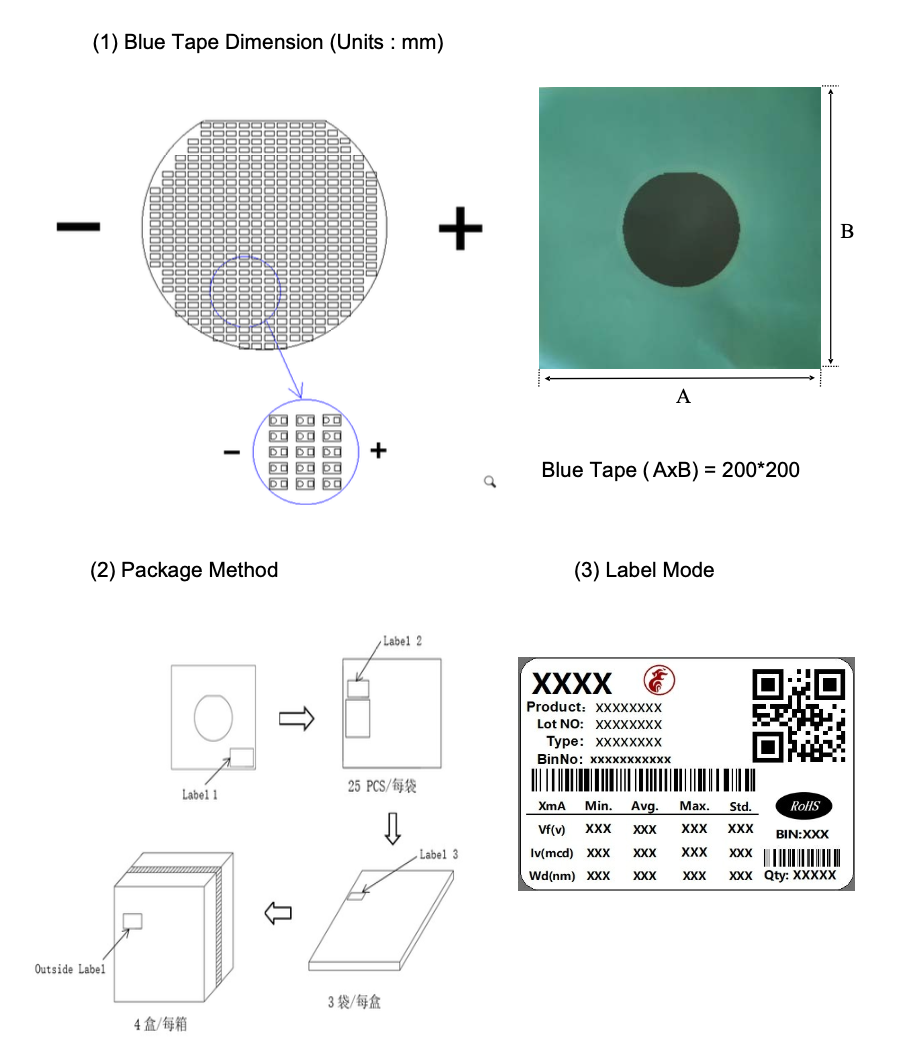

Blue Tape Packaging Method
Packaging Specifications
Blue Tape: 200×200mm
25 PCS per bag
3 bags per box
QR code tracking
Important Handling Precautions
• ESD sensitive device - use proper anti-static precautions
• Store in sealed, moisture-proof bags (6 months max before opening)
• Use within 72 hours after opening package
• Operating environment: 0-30°C, 20%-60% RH
• Avoid pressing forcefully on package surface
• Maximum 2 reflow cycles recommended
• Store in sealed, moisture-proof bags (6 months max before opening)
• Use within 72 hours after opening package
• Operating environment: 0-30°C, 20%-60% RH
• Avoid pressing forcefully on package surface
• Maximum 2 reflow cycles recommended
Applications
Optical Indicators
Indoor Displays
Smart Appliances
Wearable Devices
Portable Electronics
LED Strip Lighting
